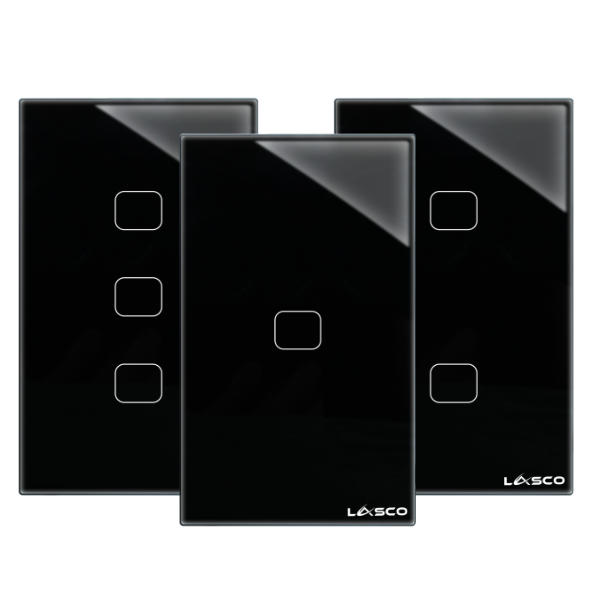

Lasco Wifi Glass Switch Frameless Flat Button 1/2/3 GANG (Black,White, Gray)

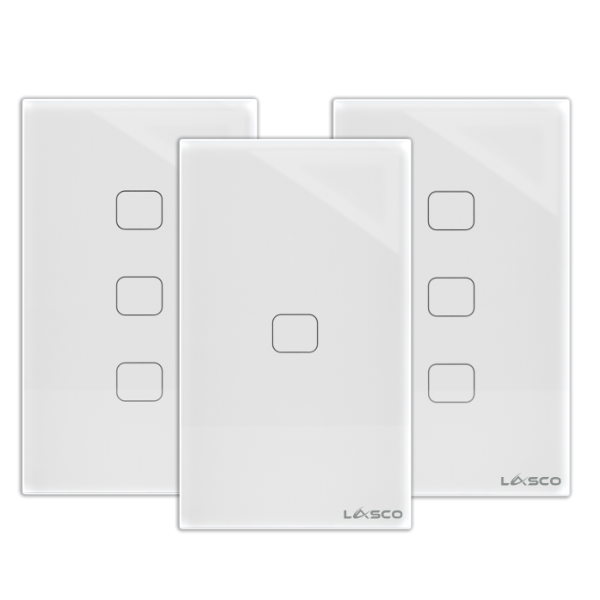

Lasco Wifi Glass Switch Frameless Flat Button 1/2/3 GANG (Black,White, Gray) - Image 2

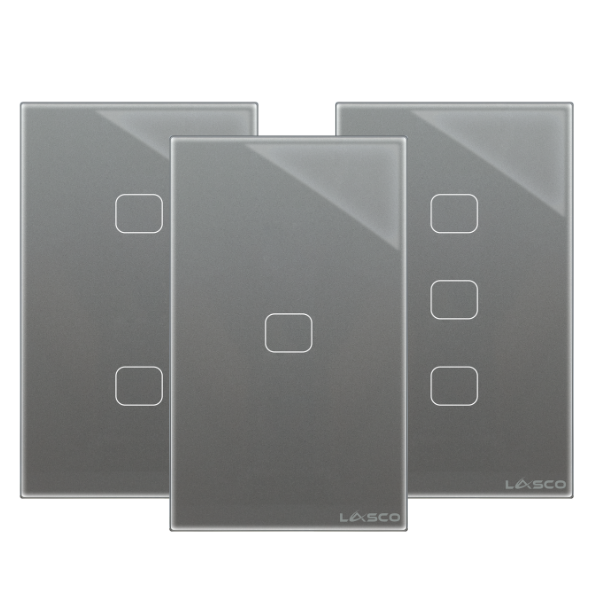

Lasco Wifi Glass Switch Frameless Flat Button 1/2/3 GANG (Black,White, Gray) - Image 3

Lasco Wifi Glass Switch Frameless Flat Button 1/2/3 GANG (Black,White, Gray)

Price range: ₱649.00 through ₱749.00

DESCRIPTION:

The Lasco Wifi Glass Switch Frameless Flat Button is a sleek touch screen light wall switch that combines modern design with reliable performance, supporting up to 10A and AC100V–240V for both LED and incandescent lighting. Its premium Panel Material with frameless tempered glass with flame-retardant PC plastic, delivers a durable, fire-safe, and elegant finish with smooth, responsive flat touch controls. Designed for flexibility and convenience, it works with or without a neutral line, connects via Wi-Fi for app and voice control, and offers smart features like scheduling, scene settings, and group control without requiring a hub.





  • Will work with or without a “neutral line.”
  • If you don’t have a neutral line, you need to use and install the capacitor (included) between the two wires going in the bulb, the bulb should be connected to Line 1 of the switch.
  • Note: all your wiring should be in parallel wiring, Series wiring will not work.

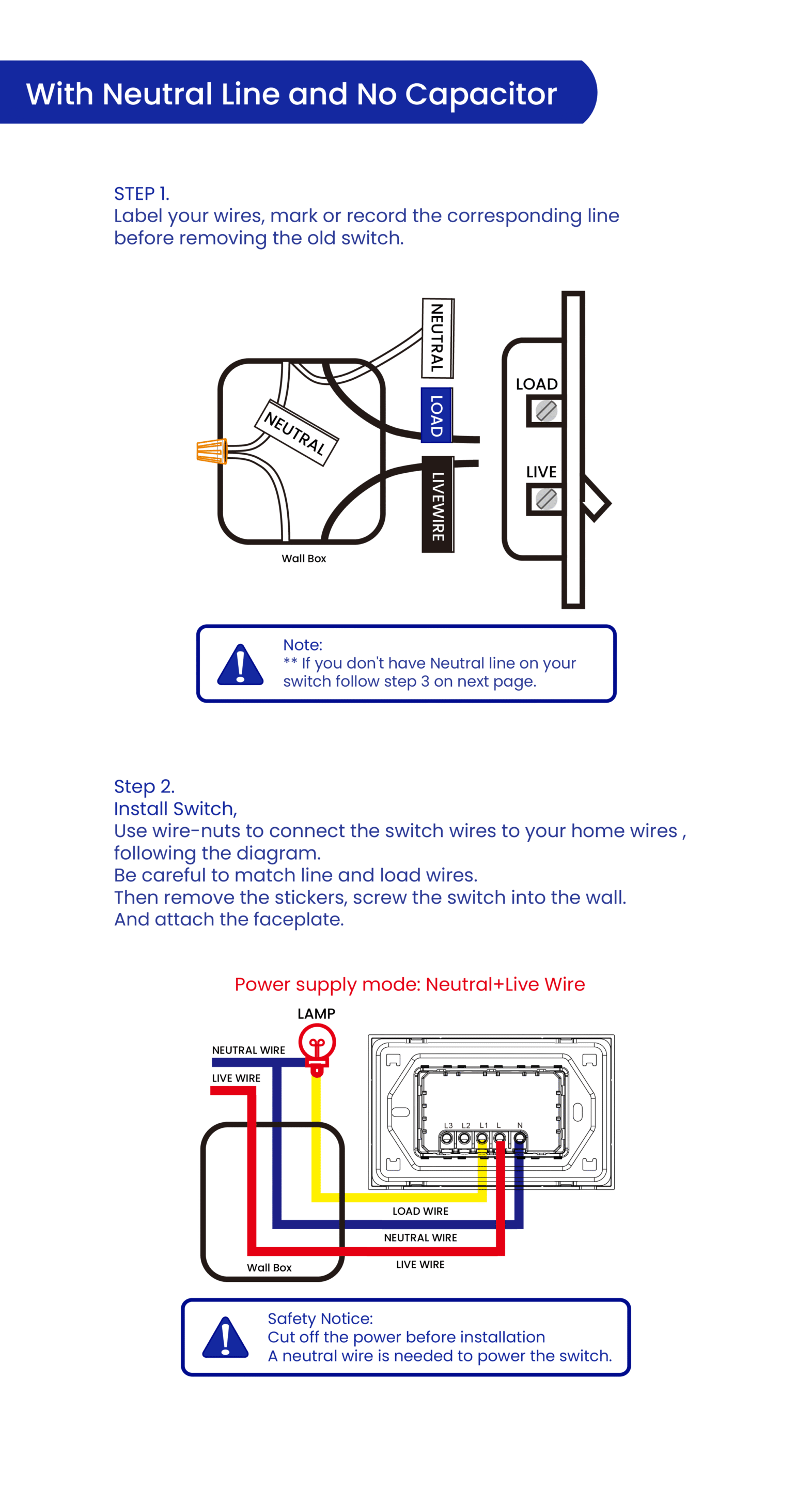

  • Please check the diagram to understand clearly.

FEATURES:

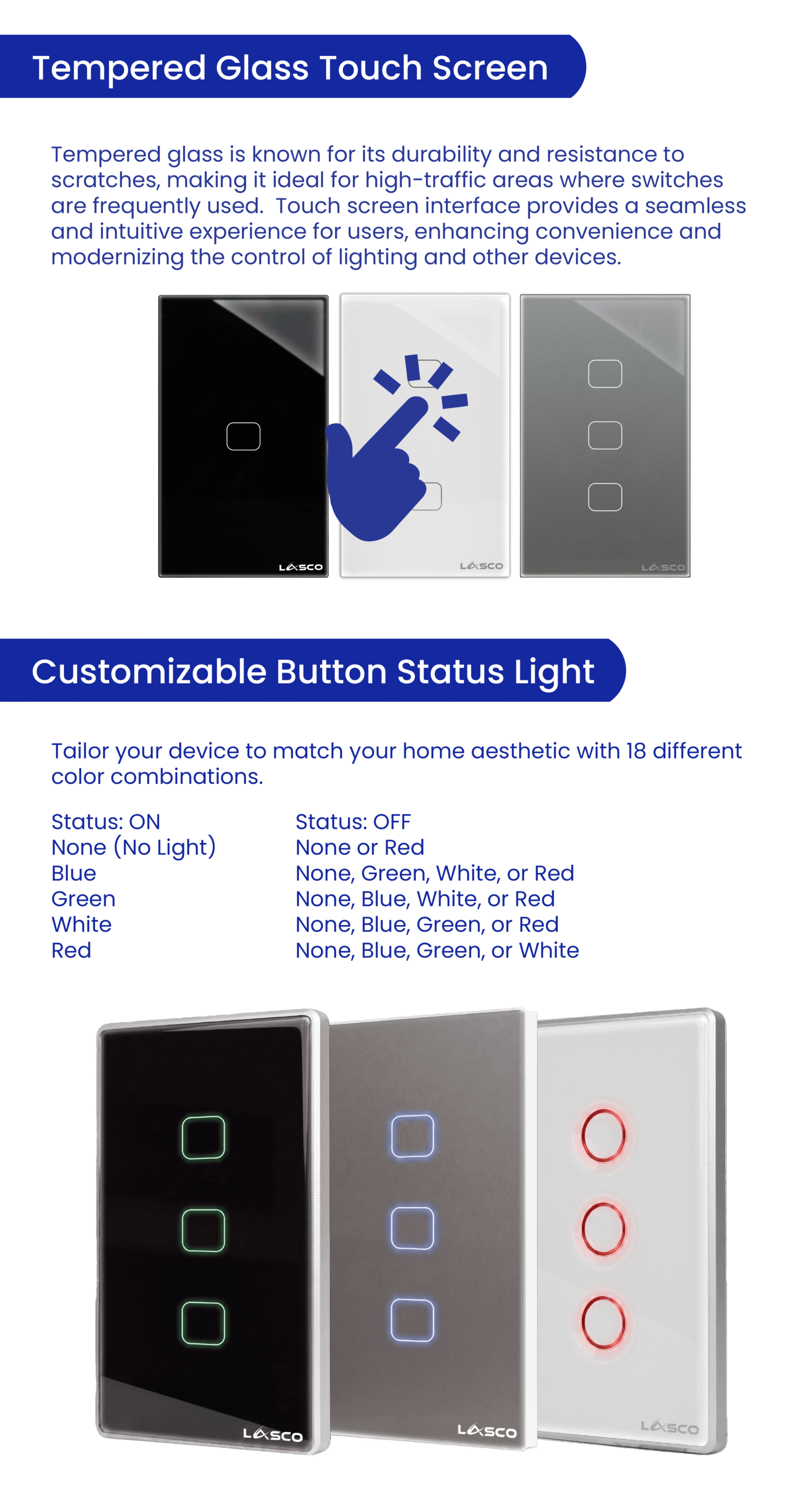

  • Tempered Glass Touch Screen
  • Scene Linkage
  • Present Scenes
  • On / Off Schedule
  • Group Control
  • Share Control
  • Status Light
  • Capacitor Optional
  • Neutral Line Optional
  • Connection requirement: Requires a 2.4 GHz Wi-Fi network during setup. Once connected, it can work on a 5 GHz network.
  • No Hub No Gateway Required
  • Fire Retardant

SPECIFICATIONS:

  • Color: White, Black and Gray
  • Current: 10A (MAX)
  • Voltage: 110V-240V
  • Load Power: LED LAMP: Max 300W; INC LAMP: Max 1,000W
  • Operating Voltage: AC100V-240V
  • Equipped with relay for safety and stability
  • Status Indicator Light
  • Connection requirement: Requires a 2.4 GHz Wi-Fi network during setup. Once connected, it can work on a 5 GHz network.
  • Type: Sensitive Touch Screen Light Wall Switch
  • Wiring Mode: With Neutral Line (capacitor not required) or Live Wire or Single Wire (capacitor required).
  • Panel Material: Frameless Tempered Glass Panel with Flat Buttons and Flame-Retardant PC Plastic.

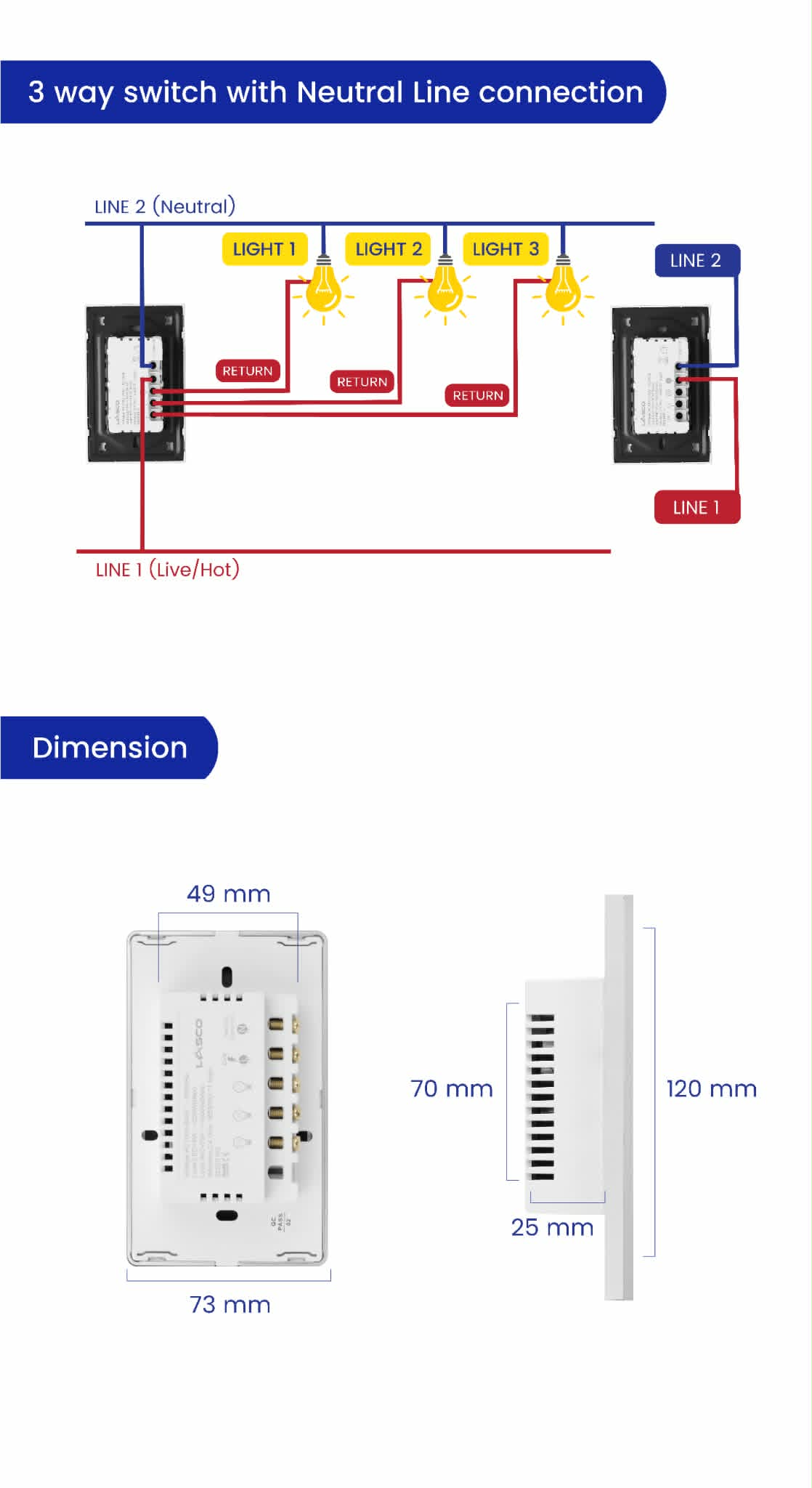

  • Dimension: 120mm by 73mm by 30mm

WORKS WITH:

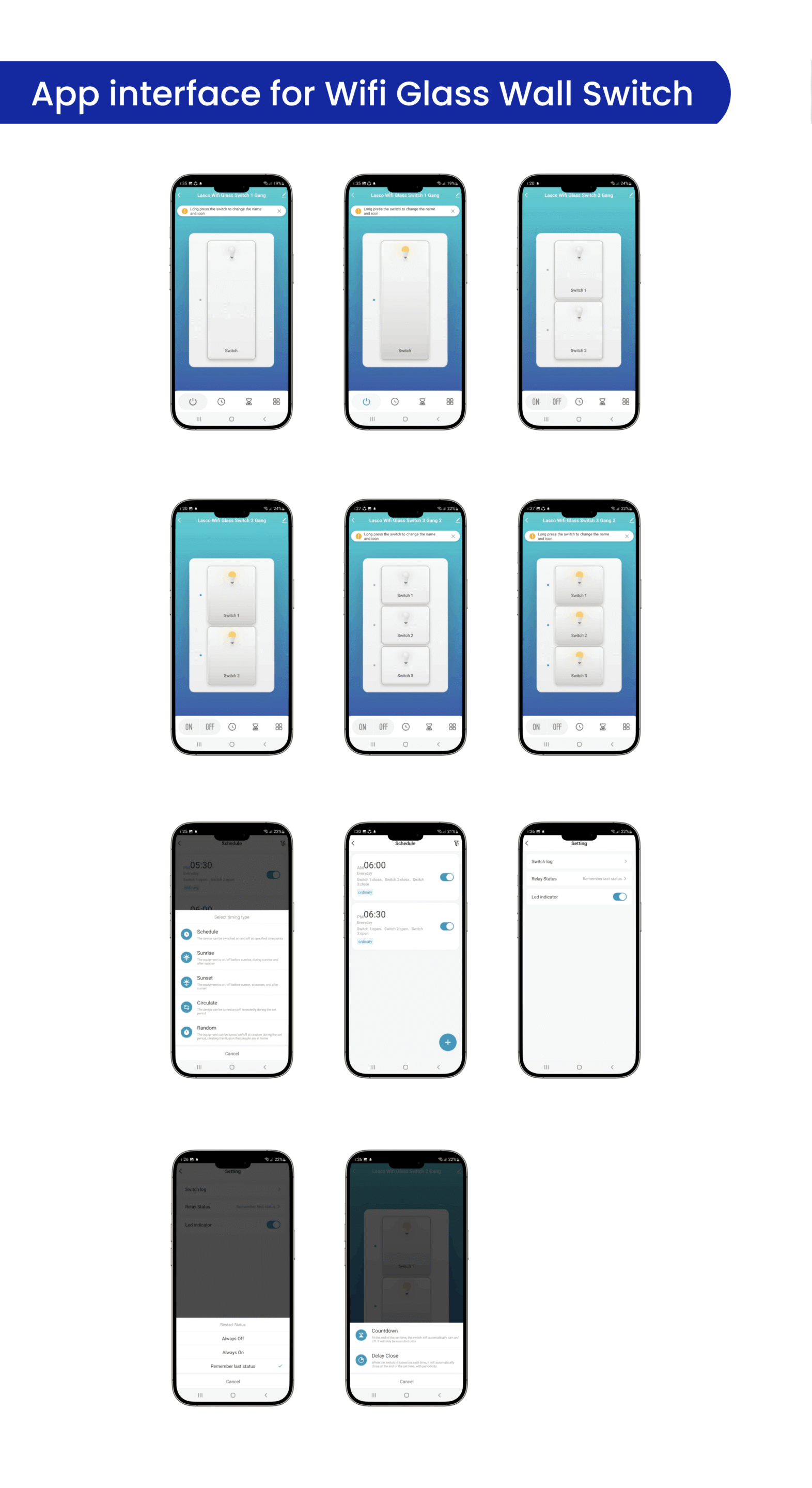

  • Lasco App, Smart Life App, Amazon Alexa, Google Assistant, Google Home, Siri Shortcut, Tuya and Wi-fi.



WHAT YOU NEED:

1.) Lasco Product

2.) Wi-fi router with 2.4 GHz internet connection.

3.) Smartphone with Lasco App (Also compatible with Smart life).

4.) (Optional for voice Command) Compatible with all generations of Google Home and Amazon Echo.
